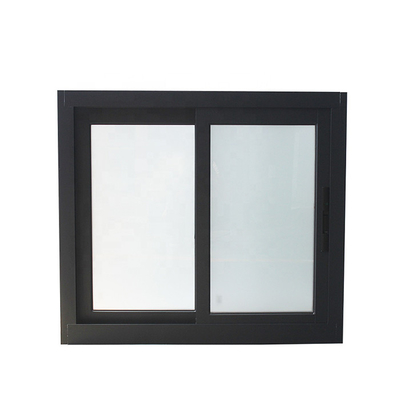

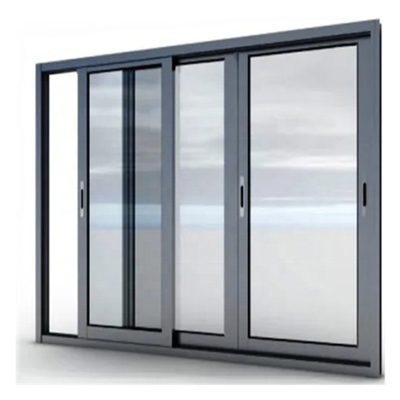

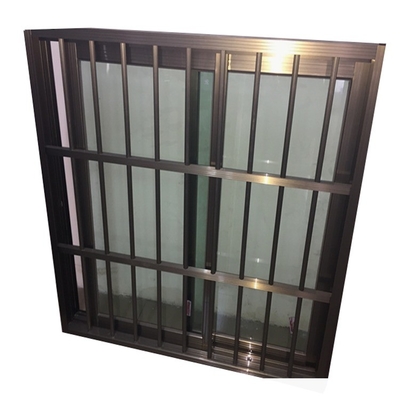

Design grille good price windows aluminum sliding window frame glass windows for house
1.Product Introduction
1. Aluminum alloy sliding window is low cost, use easily, save space, soliding, long service life, corrosion resistance, anti-aging, easy maintenance, easy to clean, etc.
| Item Name | Aluminum Sliding Windows |
| Aluminum Profile | Top-grade thermal break
Standard non-thermal break
100mm Series Australian Design |
| Profile Thickness | 1.4mm thickness for windows
2.0mm thickness for doors
2.5mm thickness for windows and doors |
| Dimension | Can be customized |
| Surface Treatment | Powder coating, Anodizing, Electrophoresis, Heat transfer for wood grain, PVDF ect. |
| Colors | Can be chosen different color: National RAL Color Chart or Australia Color Bound or Dulux |
| Glass Type | Single Glass | 5mm,6mm,8mm,10mm,12mm etc. |
| Double Glass | 5mm+6Air+5mm;
5mm+9Air+5mm;
5mm+12Air+5mm;
6mm+12Air+6mm etc. |
| Triple Glass | 5mm+6Air+5mm+6Air+5mm;
5mm+9Air+5mm+9Air+5mm 6mm+12Air+6mm+12Air+6mm etc. |
| Laminated Glass | 3mm+0.38PVB+3mm;
5mm+0.76PVB+5mm;
6mm+0.76PVB+6mm etc. |
| Glass Color | Glass Color: Tinted Glass; Blue Glass; Grey Glass; Obscure Glass; Low-E Glass; Frosted Glass etc. |
| Glass Special Customize | Glass inside with aluminum grill or blind design |
| Hardware Brand | German Siegenia hardware
Chinese high quality hardware
American hardware
Australian hardware
Italian hardware |
| Package | Plywood Board& Carton &Film |
| Delivery Time | About 30 days, depending on order's quantity |
2.Product Details
| Profiles | series | 1. 6063-T5 high quality thermal break aluminium profiles 2. 6063-T5 high quality non-thermal break aluminium profiles Commonly used series:60/70/80mm: 70series max-glass-thickness:16mm 80series max-glass-thickness:19mm |
| | Thickness | 0.6/0.8/1.0/1.2/1.4mm |
| | color | Brown\ dark grey\light grey\ black\star black |
| Glass | Types | Low-e glass\frosted glazing\ grey/blue/green tinted glass,etc. 1. Double tempered glazing:5+12A+5,6+12A+6 2. Single tempered d glazing:6,8,10,12... 3. Laminated glass:6.38,10.76,10.38... |
| | Thickness | 4-19mm. |
| | color | clear/super clear/ tinted blue/green/coffee brown/gray |
| Hardware | Germany brand\Australia brand\China brand Accessories combination 1: Crescent lock +roller pulley +EPDM sealing strip + wind block + anti-theft block + flynet 2: touch lock +roller pulley +EPDM sealing strip + wind block + anti-theft block + flynet 3: hook lock +roller pulley +EPDM sealing strip + wind block + anti-theft block + flynet |
| Mesh | Stainless steel security mesh\Aluminum security mesh Fiberglass flyscreen\Retractable flyscreen |
| Finish | Powder coating \ Anodized \ Electrophoresis \ Wood grain |
| Advantages | 1. low cost or cheap price 2. various colors 3. high strength, acid and alkali resistance, corrosion resistance, 4. long service life 5. good anti-theft 6. good thermal insulation 7. easy installation,easy cleaning and easy repairing 8. different quality grades to choose from |
3.Profile Details
Aluminum sliding window profiles series commonly used series are 50/60/70/80/88series,the max-glass-thickness available is 3-24mm,The thickness include 1.6/1.8/2.0/2.2/2.5mm. profiles surface treatments are extrusion profiles,single-sided or double-sided co-extrusion profiles,single-sided or double-sided coated profiles and all-body profile.Color has white and other customized.
4.Glass Details
5.Hardware Accessories
6.Product Parameters
| Item | Parameter | Item | Parameter |
| Airtightness/m3/(m2.h) | ≤0.5 | Profile Width/mm | 50-135 |
| Watertighness/Pa | ≥700 | Transmittance | 60%-98% up to glass type |
| wind pressure/KPa | ≥5.0 | Fire-proof level | AAAAA |
7.Processing Procedure
Aluminum alloy sliding window: blanking - assembly angle/screw connection - glue - EPDM sealing strip - weather strip -installing glass - installing pulley - installing hardware (crescent lock/touch lock/hook lock/handle lock,etc.)
8.Quality Control
Quality inspection:
1. Raw material quality testing: the color, thickness and strength of profiles will be checked after the profiles arrive at the factory. After the glass to the factory, the color and thickness of the glass will be checked again, and the sealing performance of hollow glass will be checked. Hardware color will be checked and tests how well the hardware works.
2. In the production process, there will be special quality inspectors to check each process of production.
3. After the product is finished, the group corner, sealing, size, use effect and so on will be tested9.Product Package
Product packaging:
1. Stretch film packaging
2. 5 carton packaging
3. Fumigation-free wooden frame packaging
4. Packed in wooden cases with fully enclosed and fumigation-free plywood.
Different packing methods can be applied to FCL and LCL.

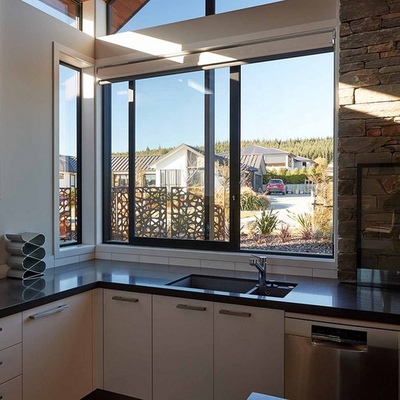

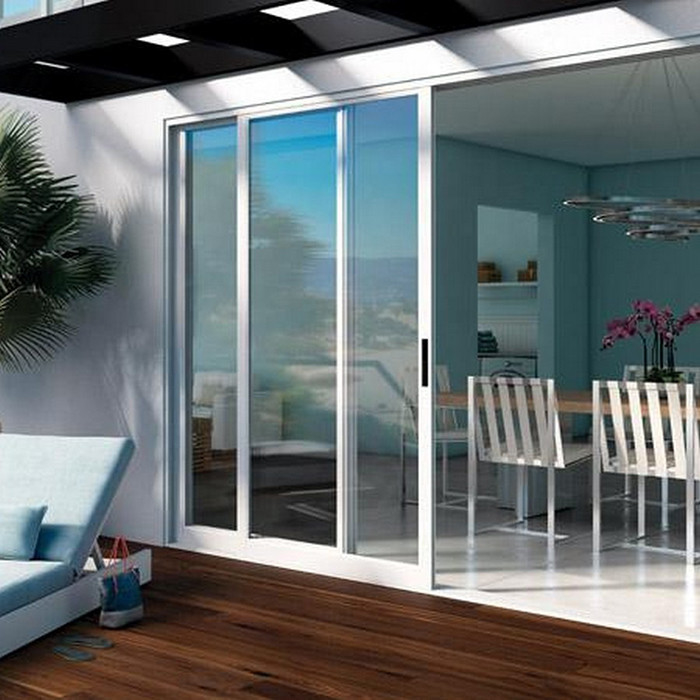

10.Project Case
11.Customer Feedback
12.Company Profile
Ace Window Doors USAhas years of experience in manufacturing, quality control and trade.The main products are aluminum alloy doors & windows and PVC doors &Windows.After exporting many windows and doors to international customers Like Europe and America, Australia, South America, Southeast Asia and some parts of Africa.
With advanced production equipment, our product meet the highest quality requirements as stipulated in EU CE certification, US certification, Australia AS2208 and AS2407 certification and our stringent quality control system.
13.FAQ
Q1: Are you trading company or manufacturer ?
A:We are Industry and trade integration.
Q2:Do you make customized products based on our design drawings?
A:Yes, we are a professional factory with an experienced engineering team to make custom products as customers request
Q3: How long is your delivery time?
A: Generally it is 10-15days.
Q4:What is the difference between anodized and mill finished?
A: Mill is the raw state of aluminum as extruded - no surface treatment. Anodized (also known as Satin Clear or Clear Anodized) is an electrolytic process. This process increases corrosion resistance and weather resistance.
Q5: Do you provide samples ? is it free or extra ?
A: We supply free samples.
Q 6:What are the advantages of using the 6000 series of alloys in aluminum extrusions?
A: The 6000 series, which incorporates magnesium and silicon, provide good extrudability, strength, corrosion resistance, formability and machinability
Q7: What is your terms of payment ?
A: T/T,L/C,D/P,D/A,Money Gram,Credit Card,PayPal,Western Union,Cash, Escrow.
