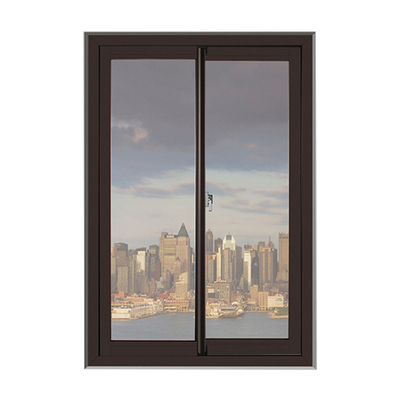

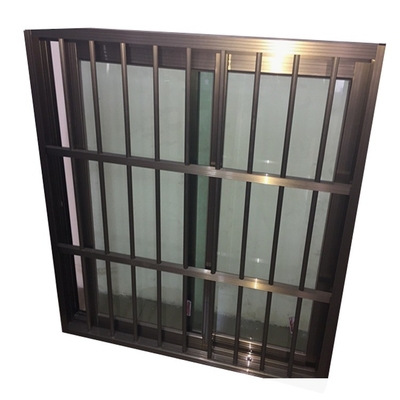

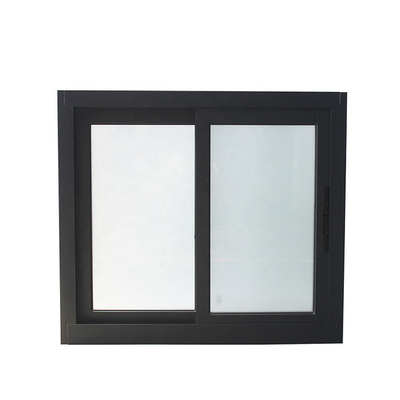

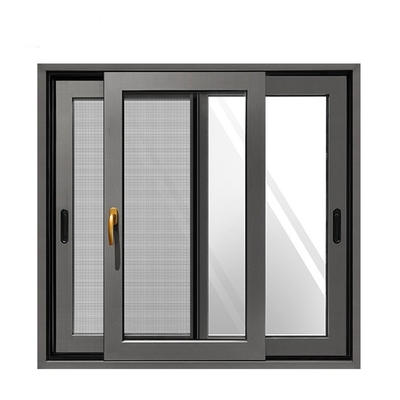

High quality french grill design sliding glass doors and windows slider window for home
1.Product Introduction
1. Aluminum alloy sliding window is low cost, use easily, save space, quality stable, long service life, corrosion resistance, anti-aging, easy maintenance, easy cleaning, etc.
| Item Name | Aluminum Sliding Windows |
| Aluminum Profile | Top-grade thermal break
Standard non-thermal break
100mm Series Australian Design |
| Profile Thickness | 1.4mm thickness for windows
2.0mm thickness for doors
2.5mm thickness for windows and doors |
| Dimension | Can be customized |
| Surface Treatment | Powder coating, Anodizing, Electrophoresis, Heat transfer for wood grain, PVDF ect. |
| Colors | Can be chosen different color: National RAL Color Chart or Australia Color Bound or Dulux |
| Glass Type | Single Glass | 5mm,6mm,8mm,10mm,12mm etc. |
| Double Glass | 5mm+6Air+5mm;
5mm+9Air+5mm;
5mm+12Air+5mm;
6mm+12Air+6mm etc. |
| Triple Glass | 5mm+6Air+5mm+6Air+5mm;
5mm+9Air+5mm+9Air+5mm 6mm+12Air+6mm+12Air+6mm etc. |
| Laminated Glass | 3mm+0.38PVB+3mm;
5mm+0.76PVB+5mm;
6mm+0.76PVB+6mm etc. |
| Glass Color | Glass Color: Tinted Glass; Blue Glass; Grey Glass; Obscure Glass; Low-E Glass; Frosted Glass etc. |
| Glass Special Customize | Glass inside with aluminum grill or blind design |
| Hardware Brand | German Siegenia hardware
Chinese high quality hardware
American hardware
Australian hardware
Italian hardware |
| Package | Plywood Board& Carton &Film |
| Delivery Time | About 30 days, depending on order's quantity |
2.Product Details
| Profiles | series | 1. 6063-T5 high quality thermal break aluminium profiles 2. 6063-T5 high quality non-thermal break aluminium profiles Commonly used series:60/70/80mm: 70series max-glass-thickness:16mm 80series max-glass-thickness:19mm |
| Thickness | 0.6/0.8/1.0/1.2/1.4mm |
| color | Brown\ dark grey\light grey\ black\star black |
| Glass | Types | Low-e glass\frosted glazing\ grey/blue/green tinted glass,etc. 1. Double tempered glazing:5+12A+5,6+12A+6 2. Single tempered d glazing:6,8,10,12... 3. Laminated glass:6.38,10.76,10.38... |
| Thickness | 4-19mm. |
| color | clear/super clear/ tinted blue/green/coffee brown/gray |
| Hardware | Germany brand\Australia brand\China brand Accessories combination 1: Crescent lock +roller pulley +EPDM sealing strip + wind block + anti-theft block + flynet 2: touch lock +roller pulley +EPDM sealing strip + wind block + anti-theft block + flynet 3: hook lock +roller pulley +EPDM sealing strip + wind block + anti-theft block + flynet |
| Mesh | Stainless steel security mesh\Aluminum security mesh Fiberglass flyscreen\Retractable flyscreen |
| Finish | Powder coating \ Anodized \ Electrophoresis \ Wood grain |
| Advantages | 1. low cost or cheap price 2. various colors 3. high strength, acid and alkali resistance, corrosion resistance, 4. long service life 5. good anti-theft 6. good thermal insulation 7. easy installation,easy cleaning and easy repairing 8. different quality grades to choose from |
3.Profile Details
Aluminum sliding window profiles series commonly used series are 50/60/70/80/88series,the max-glass-thickness available is 3-24mm,The thickness include 1.6/1.8/2.0/2.2/2.5mm. profiles surface treatments are extrusion profiles,single-sided or double-sided co-extrusion profiles,single-sided or double-sided coated profiles and all-body profile.Color has white and other customized.
4.Glass Details
Glass types are Low-e glass,frosted glazing and tinted glass,etc. Especially,double tempered glazing is 5+12A+5,6+12A+6.Single tempered glazing is 6mm, 8mm,10mm,12mm...Laminated glass is 6.38,10.76,10.38...Glass thickness is 4-19mm.Glass color has clear,super clear,tint blue/ green/coffee brown/gray...
5.Hardware Accessories
6.Product Parameters
| Item | Parameter | Item | Parameter |
| K/U (insulation) | <1.1 | Glass thickness/mm | 3-30 |
| Airtightness/m3/(m2.h) | ≤0.5 | Profile Width/mm | 50-135 |
| Watertighness/Pa | ≥700 | Transmittance | 60%-98% up to glass type |
7.Processing Procedure
Aluminum alloy sliding window: blanking - assembly angle/screw connection - glue - EPDM sealing strip - weather strip -installing glass - installing pulley - installing hardware (crescent lock/touch lock/hook lock/handle lock,etc.)
8.Quality Control
Quality inspection:
1. Raw material quality testing: the color, thickness and strength of profiles will be checked after the profiles arrive at the factory. After the glass to the factory, the color and thickness of the glass will be checked again, and the sealing performance of hollow glass will be checked. Hardware color will be checked and tests how well the hardware works.
2. In the production process, there will be special quality inspectors to check each process of production.
3. After the product is finished, the group corner, sealing, size, use effect and so on will be tested
9.Product Package
Product packaging:
1. Stretch film packaging
2. 5 carton packaging
3. Fumigation-free wooden frame packaging
4. Packed in wooden cases with fully enclosed and fumigation-free plywood.
Different packing methods can be applied to FCL and LCL.
10.Project Case
11.Customer Feedback
12.Company Profile
Ace Window Doors USAis a collection of design, production, domestic engineering, export trade, foreign installation in one of the large doors and Windows construction engineering enterprises, with 11 years of experience in doors and Windows export.
We do excellent in assisting customers to design,manufacture and install windows and doors for their house,office, villa, factory and Airport,etc.After sales, We will always provide good service, like how to fix hardware and how to install windows and doors.We will gladly evaluate your needs and recommend the arrangement that is best for your requirements.
13.FAQ
Q1: Are you a factory or trading company?
A: We are Industry and trade integration.
Q2: What is the material of you products?
A: The material is Aluminum or PVC/UPVC profile
Q3: How can I get some samples?
A: We are honored to offer you samples.
Q4: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling from the beginning to the end.
Q5: Are there any problems with the glass inside? Having steam or going foggy? As this will be a real problem.
A: Usually, we use 5mm+9A+5mm double glass, you can be rest assured. Our double glass is made professionally by big factory, no steam or going foggy between the double glass.
Q6:What is the area of your factory?
A:Our factory has three layers and covers an area of 10,000 square meters.
Q7. Is there any price difference between powder coating and anodising?
A. No price difference between them. We recommend you to choose anodised finish if the house is near salt water for long-effective corrosion resistance .but powder coating will be better if the house is far away from salt water.
